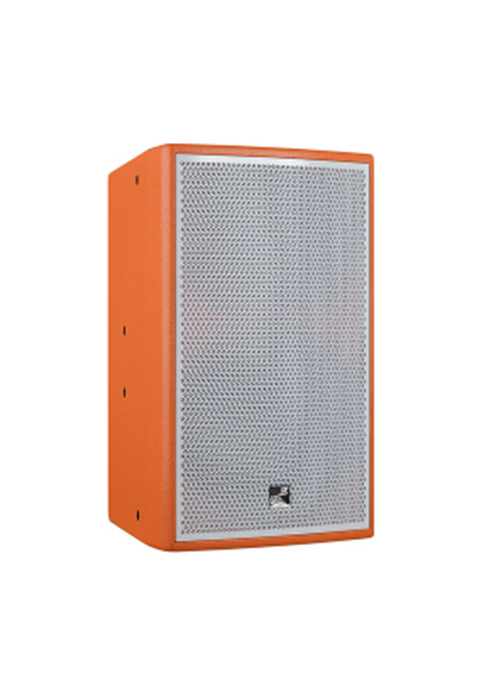

Box: 15mm multilayer board with internal reinforcement. Surface treatment: five layers of water-soluble paint (color can be customized according to customer requirements). Protective grating: 1.5mm sound permeable steel plate. Frequency divider: built in passive frequency divider network, modular design.
Box: 15mm multilayer board with internal reinforcement
Surface treatment: five layers of water-soluble paint covering (color can be customized according to customer requirements)
Protective grating: 1.5mm sound permeable steel plate
Frequency divider: built in passive frequency divider network, modular design
Lifting point: 5-point pre installed hanger, 1 standard 35 mm support base
Input connection point: 2 netrik speakon nl4mp speaker connectors
Unit composition: bass unit：1×12”Voice-coil:76mm Treble unit：1×1”Voice-coil:38mm | frequency response(+/-3dB)：55-20000Hz |
Coverage angle (- 6dB): 70 degrees (horizontal) * 60 degrees (vertical) | Sensitivity：106dB@1W.M |
Sound pressure level output：124dB | Standard impedance: 8 ohm |
Input power: 400W (rated) 1600W (peak) | Net size（H * W *D）：600mm*350mm*395mm |
Net weight：（KG）：20 |
